ADS触摸芯片设计参考-触控科技ADS触摸芯片代理
Grouping of Touch Sensor
Group | Touch Sensor | Description | Application |
1-channel Differential Mode T/S | TS01S (SOT26)* | - Small package 1-ch. touch sensor | - Electric home appliances - Mobile application |
TH01 (SOT26)* | - Small package 1-ch. touch sensor | - Hall sensor substitution | |
Multi-ch. Parallel Output T/S | TS02N (8SOP) TS02K (8SOP)* | - 2-ch. parallel output touch sensor | - Electric home appliances |
TS08N (24SOP, 32QFN) | - 8-ch. parallel output touch sensor | - TV/ Monitor key panel | |
TS08P (24QSOP, 24QFN) | - 8-ch. parallel output touch sensor - 2 analog voltage output ports (D/A) - Free from external element | - Electric home appliances - TV/ Monitor key panel | |
TS04 (16QFN) | - 4-ch. parallel output touch sensor | - Mobile / Electric home appliances | |
ASRG08QD (32QFN) (Punch type) | - 8-ch. parallel/ I2C touch sensor - 8-ch. LED driver IC (parallel output) | - Mobile / Electric home appliances with LED | |
I2C Interface T/S | |||
TSM12 (32QFN) | - 12-ch. I2C interface touch sensor | - Mobile / Door lock | |
TS06 (16QFN) | - 6-ch. I2C interface touch sensor - 3-ch. LED driver IC - 5-ch. Tact SW interface IC | - Mobile touch sensor with LED / TACT SW | |
TS20 (28QFN)* | - 20-ch I2C interface touch sensor - Touch sensing / LED driver / Tact SW interface | - Mobile touch sensor with LED / TACT SW - Electric home appliances |
Touch Sensor Pin Description
Pin | Description | Touch Sensor |
RBIAS | - Bias current adjust pin | - External bias setting touch sensor (TS02N, TS08N, TSM12, TS06, TS04) |
SRBIAS | - Sleep mode bias resistor pin | - Touch sensor with sleep mode function (TSM12, TS06) |
IRBIAS | - Internal I2C clk bias adjust pin | - TSM12 only |
CS | - Sense detect input | - All touch sensor |
| - LED drive output / Tact SW input | - TS06, TS20, ASRG08QD | |
CR | - Differential calibration sense input | - Differential sensitivity calibration touch sensor (TS01S, TH01) |
OUT | - Parallel output pin | - Parallel output touch sensor (TS02N(K), TS08N, TS08P, TS04, TS01S, TH01) |
| - Analog voltage output pin(D/A output pin) | - TS08P, ASRG08QD | |
SYNC | - Sync signal in/out pin - Option selection input pin | - All TS-series except TS06, TS04, TS08P |
IMP_SEL | - Sense line impedance selection pin | - Multi-channel touch sensor (TS08N) |
ID_SEL | - I2C interface ID selection input | - TSM12 only |
RESET | - Internal digital block reset input | - External reset touch sensor (TS08N, TSM12) |
SDA | - I2C Interface data in/out pin | - I2C Interface mode touch sensor (TSM12, TS06, TS20, ASRG08QD) |
SCL | - Communication clk input pin | - I2C Interface mode touch sensor (TSM12, TS06, TS20, ASRG08QD) |
INT | - Interrupt signal output pin | - I2C Interface mode touch sensor (TSM12, TS06,TS20, ASRG08QD) |
I2C_EN | - Internal I2C clk enable pin | - I2C Interface mode touch sensor (TSM12, TS06) |
Application Circuit Elements
Components | Name | Description |
RB | Bias Resistor | - Internal bias current adjustment - System clk speed adjustment - 1% deviation resistor is recommended |
CB | Bias Stabilizer Capacitor | - Connect to VDD - 820pF(or 1nF) capacitor is recommended ( except TS04 & TS06) |
CS | Sense Capacitor | - Fine sensitivity tuning capacitor - Parasitic capacitance of CS also affect on sensitivity - Under 10pF (“C” grade ± 0.25pF), Over 10pF (“J” grade ± 5%) - Under 100pF capacitor should be used |
CR | Reference Capacitor | - Differential sensitivity calibration capacitor - Sensitivity tuning capacitor for initial touch detect - Under 10pF (“C” grade ± 0.25pF), Over 10pF (“J” grade ± 5%) - Under 100pF capacitor should be used |
RS | Sensing Series Resistor | - Protection resistor of sense input - Under 1kΩ is recommended |
RRST, CRST | Reset Resistor/Capacitor | - External component for power reset |
ROUT | Output Pull-up Resistor | - Open drain output structure - 10kΩ is recommended |
RSYNC | Sync Pull-down Resistor | - 2MΩ is recommended |
Touch Sensor IC of ADS
触摸芯片设计原理图

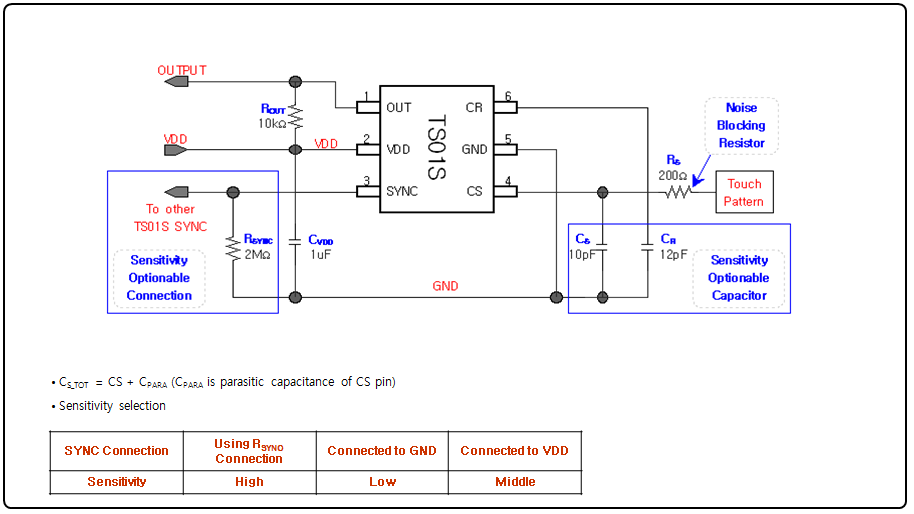

TS01S

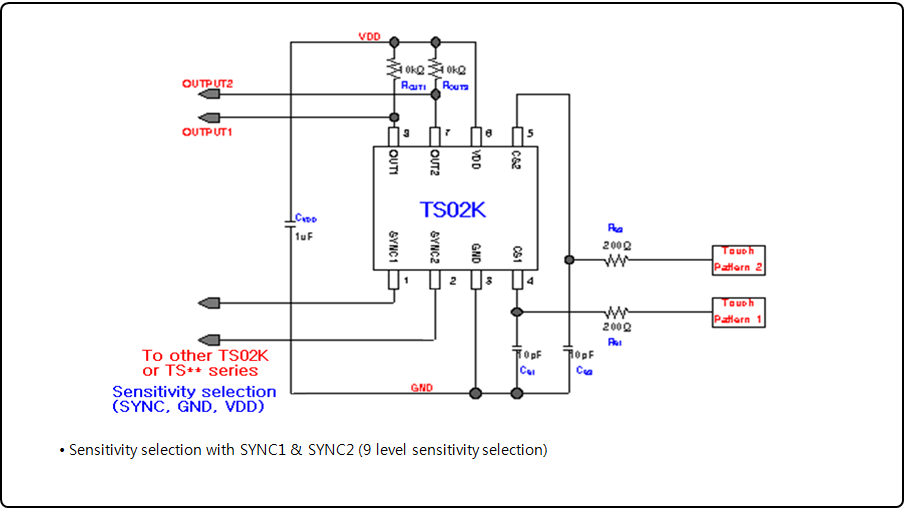

TS02K

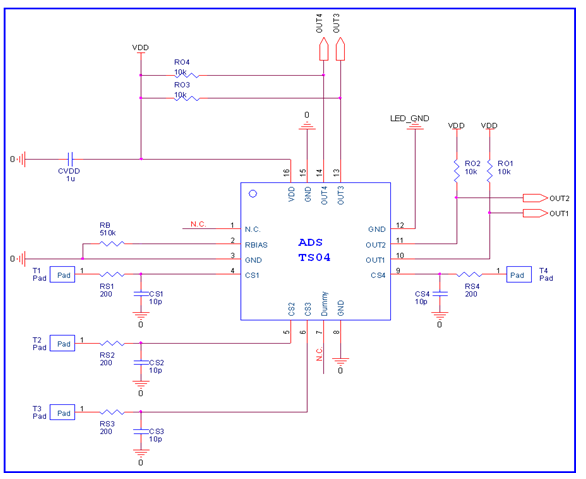

TS04

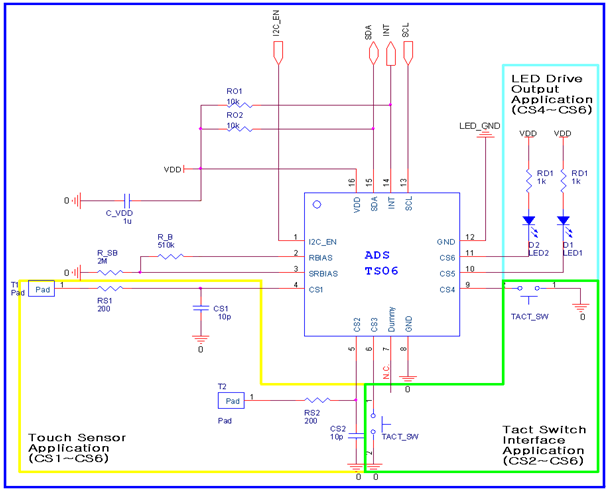

TS06

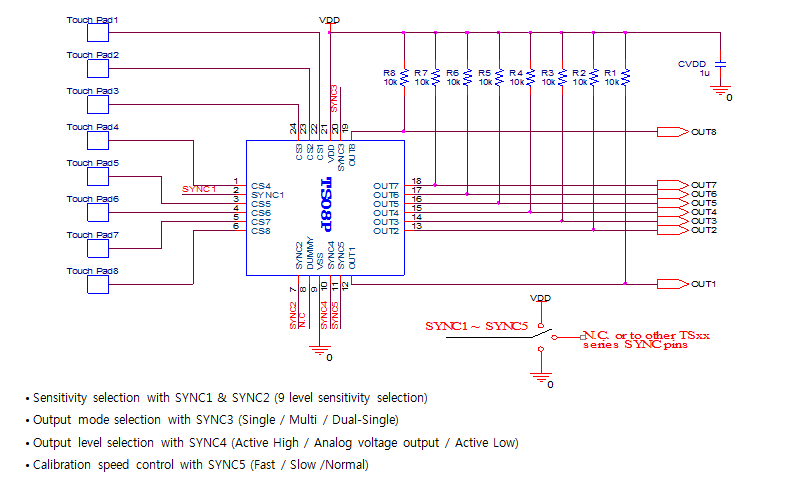

ASSG08QB(TS08P) (24QFN)

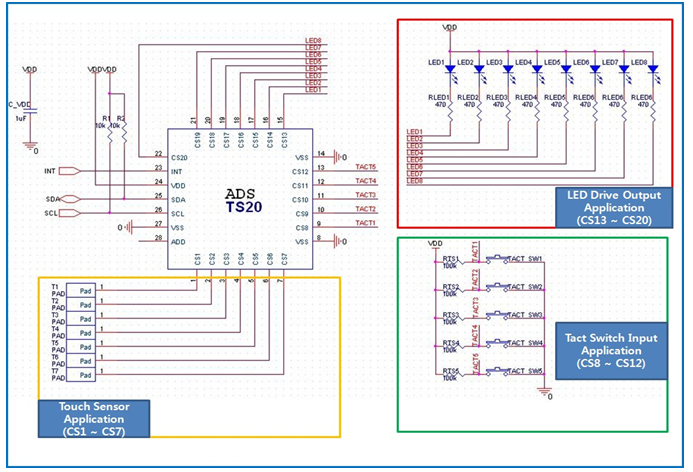

TS20 (28QFN)

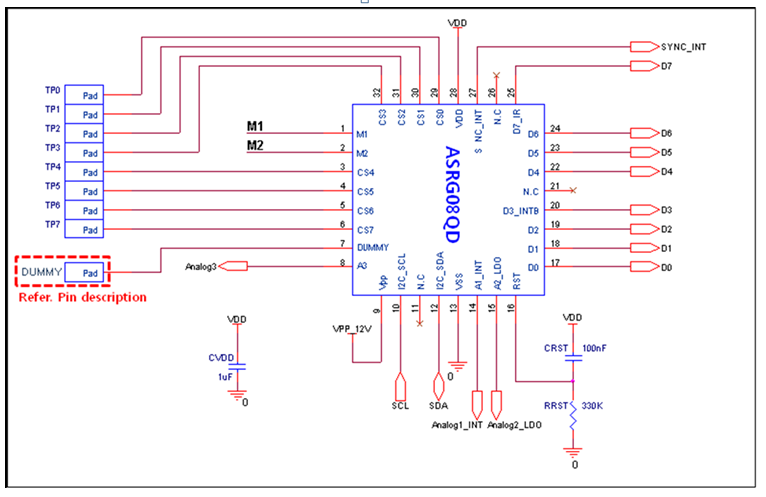

ASRG08QD (32QFN)_Parallel_output

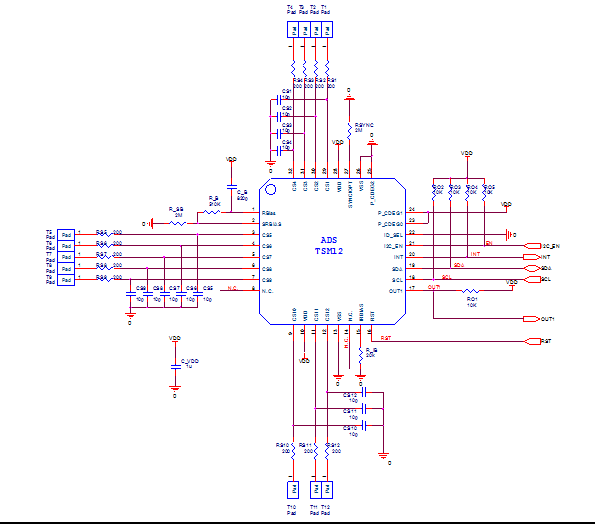

TSM12 (32MLF)_I2C
